What is Ivideon Bridge? Common overview of Ivideon Bridge and its specifications

Last update: 12.10.2024

Ivideon Bridge is a portable PC in compact case with implemented Ivideon software (special version of Ivideon Server). Ivideon Bridge allows to connect IP cameras and DVRs to Ivideon cloud via RTSP/ONVIF protocols and configure connected cameras directly from the Personal Account (despite desktop version of Ivideon Server and DVRs with Ivideon firmware, that allow to configure cameras only locally from server/DVR interface).

Ivideon Bridge allows to connect already working local surveillance systems and use most of cloud features with them (cloud archive recording, analytics, etc.). At the same time, camera connection to Ivideon Bridge is as easy as possible - in most cases only IP address, username and password of the camera are needed. Ivideon Bridge requires access to the devices via local network and Internet connection (to access Ivideon cloud).

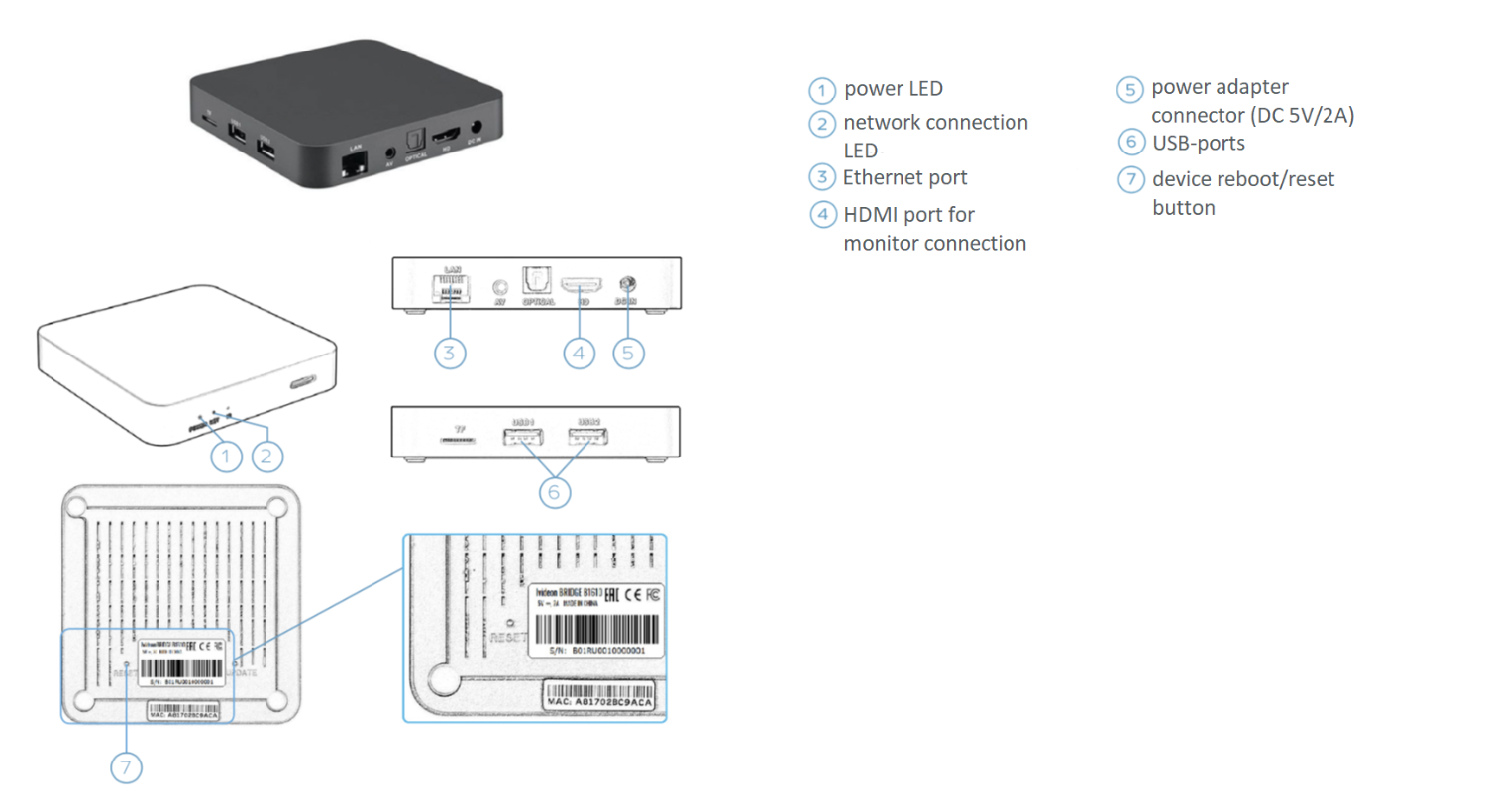

Common overview of Ivideon Bridge B1610




Specifications of Ivideon Bridge B1610

Supported devices

Device types

Digital and analog videorecorders, IP-cameras

Ivideon Bridge cannot be used to connect USB-cameras or IP-cameras using MJPEG protocol for data transmission.

Supported data transmission protocols

RTSP
ONVIF
Dahua
Hikvision ISAPI

Maximum number of connected devices

16 cameras or DVR channels with any stream specifications. Stable work is guaranteed if common bitrate of all connected cameras is lower than 32Mbit/s

Supported video and audio codecs

video: h.265/h.264, resolution, bitrate and fps are restricted by capabilities of the device connected, though common bitrate of all connected cameras should be lower than 32mbit/s
audio: aac, G.711, G.726

Supported functions for devices connected to Bridge

Ivideon cloud service support

Connection and configuration via Ivideon personal account (www.ivideon.com/my/)

Autosearch tool

Can be used for devices with UPnP or ONVIF supportall devices should be connected to the same local network with Bridge, UPnP and data transmission within local network should not be blocked by any software or network configuration

Connection

1) for ONVIF devices - login and password are required
2) for RTSP devices - login and password are required (if the correct device model is chosen from the devices list)
3) for RTSP with manual RTSP-url configuration - login and password + correct RTSP-url for the exact device

Data encryption

TLS

Multiple stream support (main + sub-streams)

Yes

PTZ control support

Yes, for ONVIF, Dahua and Hikvision devices*

Motion and sound detection

Yes, for ONVIF devices and devices with Dahua and Hikvision isapi protocols support*

Videostream configuration

It’s possible to configure resolution, bitrate and fps parameters for ONVIF devices and devices with Dahua and Hikvision isapi protocols support

Local archive access

For devices with Dahua and Hikvision isapi protocols support

* - feature support depends on the specifications of the exact device model and its current firmware version

https://docs.ivideon.com/display/IF/Dahua - supported Dahua devices

https://docs.ivideon.com/display/IF/Hikvision - supported Hikvision devices

Supported functions of the Ivideon service for connected devices

Live-feed access

For all connected devices

Continuous cloud archive recording

Up to 365 days of archive storage, only for Cloud Pro plans. For all connected devices

Cloud archive recording upon motion and sound detection

Up to 365 days of archive storage. For all ONVIF, Dahua and Hikvision devices*

Event-clips recording upon motion and sound detection

For all ONVIF, Dahua and Hikvision devices*

Smart notifications upon motion and sound detection

For all ONVIF, Dahua and Hikvision devices*

Access to local archive from an SD-card (for cameras) or HDD (for DVR)

For all Dahua and Hikvision devices*

Scheduled archive export of the recordings from an SD-card (for cameras) or HDD (for DVR)

For all Dahua and Hikvision devices, only with Cloud Pro plans*

Remote archive export via Ivideon service

Playback of archive recordings with up to x64 speed

Only for Cloud archive recordings

Smart motion search tool

Only for Cloud archive recordings (requires Cloud 30 Pro or plans with longer archive storage)

“Queue detector” feature

Requires “Queue detector” special pricing plan enabled

Motion detection reports

only for Cloud Pro plans

Access rights management without restrictions

Access from different devices and platforms: PC, tablets and smartphones

Videostream configuration

For all Dahua and Hikvision devices*

* - feature support depends on the specifications of the exact device model and its current firmware version

Device specifications

Size

WхDхH: 100 х 100 х 15 mm.
